034Motorsport B7 Audi A4 2.0TFSI Performance Software



SKU: 034-B7-20T-FSI-S1

Manufacturer: 034Motorsport

034Motorsport Performance Software is now available for B7 Audi A4 models equipped with the EA113 2.0T FSI Longitudinal engine!

Flashed directly through your vehicle's OBD-II port, 034Motorsport’s proprietary calibrations for the Bosch MED9 ECU safely and effectively increase the power output of the 2.0T FSI engine. The result is a noticeable improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.

034Motorsport's EA113 2.0T FSI Longitudinal Performance Software was developed entirely in-house on 034Motorsport's Development B7 Audi A4. The calibrations were then refined on multiple enthusiast-owned B7 Audi A4 2.0T FSI vehicles before release.



Software Features

Dyno Proven Gains
Increased Horsepower & Torque Throughout the Powerband
Acceleration Enhancements
Improved Power Delivery, Acceleration, and Driving Characteristics
Multiple Octane Support
Available in 91 Octane, 93 Octane, 100 Octane, and 104 Octane Calibrations
Faster Throttle Response & Improved Precision
Refined Throttle Mapping for Enhanced Throttle Response & Precision
Raised Rev Limit
Raised RPM Limit to 7,100 for Broader Powerband
Speed Limiter Removed
Speed Limiter Removed for Increased Top Speed
Crackle Overrun
Crackle Overrun Enabled in Sport Mode for Stage 2
Port Flashing
Flashed Directly Via the Factory OBD-II Port


034MOTORSPORT EA113 2.0T FSI LONGITUDINAL MED9 ECU PERFORMANCE SOFTWARE COMPARISON

Stage Fuel Max HP Max TQ Max HP Gain Max TQ Gain Rev Limiter Speed Limiter
Stock 91 Oct 205 HP 202 TQ NA NA 6,800 RPM 205kph
Stage 1 91 Oct 246 HP 287 TQ 60 HP @ 3,900 RPM 98 TQ @ 3,200 RPM 7,100 RPM
K04 Turbo 91 Oct 303 HP 317 TQ 103 HP @ 6,500 RPM 123 TQ @ 3,500 RPM 7,100 RPM





034MOTORSPORT EA113 2.0T FSI LONGITUDINAL MED9 ECU PERFORMANCE SOFTWARE STAGE DESCRIPTIONS

STAGE 1

034Motorsport Stage 1 Performance Software for the EA113 2.0T FSI engine is engineered to safely increase horsepower and torque with no hardware modifications required. 034Motorsport's proprietary calibrations increase boost while optimizing timing and fueling maps to extract additional power from the 2.0T engine.

Stage 1 Performance Software features a higher redline of 7,100 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

K04 TURBO

034Motorsport K04 Performance Software for the EA113 2.0T FSI engine is engineered to safely increase horsepower and torque with the addition of a K04 Turbocharger, High-Flow Downpipe, Larger Injectors, and HPFP Upgrade. 034Motorsport's proprietary calibrations increase boost while optimizing timing and fueling maps to extract additional power from the 2.0T engine.

K04 Performance Software features a higher redline of 7,100 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

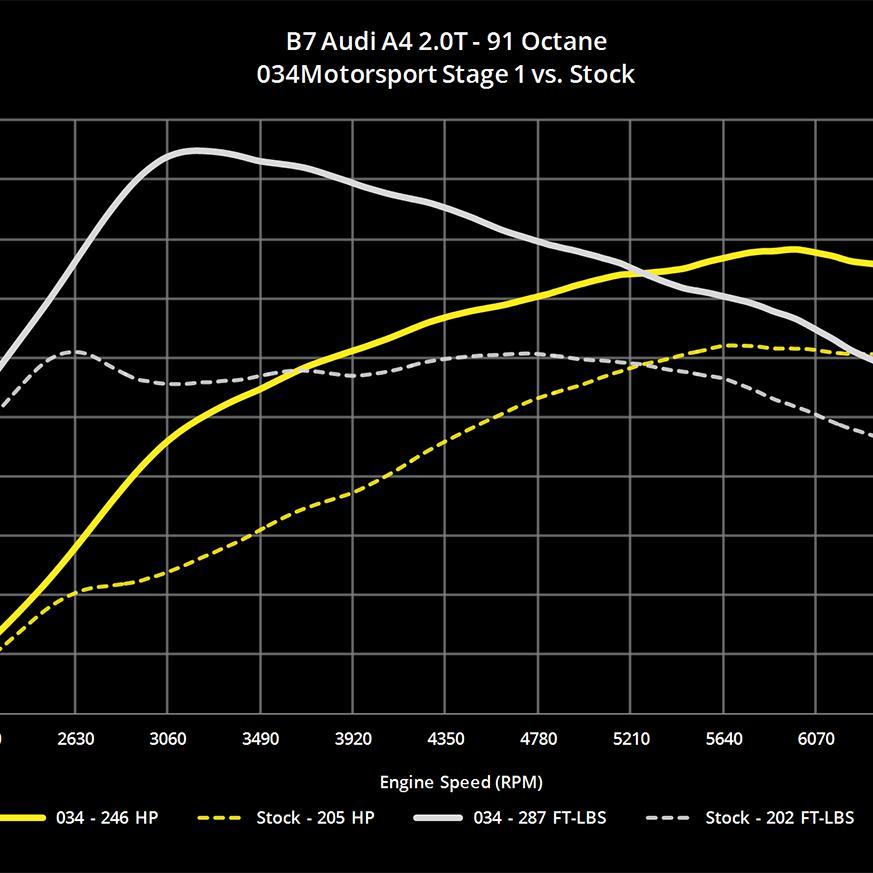

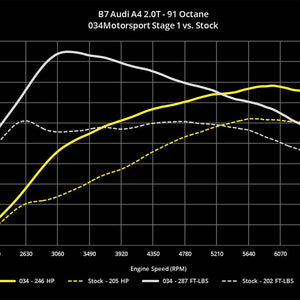

034MOTORSPORT EA113 2.0T FSI LONGITUDINAL MED9 ECU PERFORMANCE SOFTWARE DYNO CHARTS


Select Dyno Chart:







034MOTORSPORT EA113 2.0T FSI LONGITUDINAL MED9 ECU PERFORMANCE SOFTWARE HARDWARE REQUIREMENTS



Stage Required Modifications Recommended Modifications
Stage 1
  • No hardware required

  • Performance Intercooler Upgrade
K04 Turbo




034Motorsport Dynamic+ End User Flashing Kit

034Motorsport's Dynamic+ End User Flashing Kit allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.

Requirements for End User Flashing:

  • Windows 7 or Windows 10 Laptop with Available USB Port
  • Power Supply for Laptop
  • Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
  • CTEK Trickle Charger (Or Similar)
  • Available Electrical Outlets

034Motorsport End User Flashing Kit Contents:

  • 034Motorsport OBD-II Adapter
  • USB-A to USB-B Cable
  • Carrying Case
  • User Credentials (Provided Via Email)





EMISSIONS DISCLAIMER

  • This product is sold for racing and off-road use only.
  • This product is not CARB or EPA compliant, this product is not authorized for use in California on smog controlled vehicles.
  • By purchasing this product, you understand this product is sold for competition use on closed roads and is not legal for use in highway or street vehicles.
