034Motorsport Dynamic+ Sway Bar Kit, B9 Audi A4/S4, A5/S5/RS5, Allroad

ALT-034Motorsport

ALT-034-402-1012


034Motorsport is proud to offer the ultimate sway bar upgrade package for the B9 Audi A4/S4, A5/S5/RS5, and Allroad! The 034Motorsport Dynamic+ Sway Bar Kit features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability.

Designed to reduce body roll and enhance steering feel further than a rear sway bar upgrade alone, 034Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on track. Unlike the 22.2mm Dynamic+ Rear Sway Bar, installing the Dynamic+ Sway Bar Kit will result in a noticeably firmer ride. As such, we recommend this product for those who are looking for a more significant shift in suspension dynamics from comfort to performance.

Track-Proven Handling Performance

The Dynamic+ Sway Bar Kit was thoroughly evaluated on the street and track with the 034Motorsport B9 Audi A4 and 034Motorsport B9 Audi S4 before release.

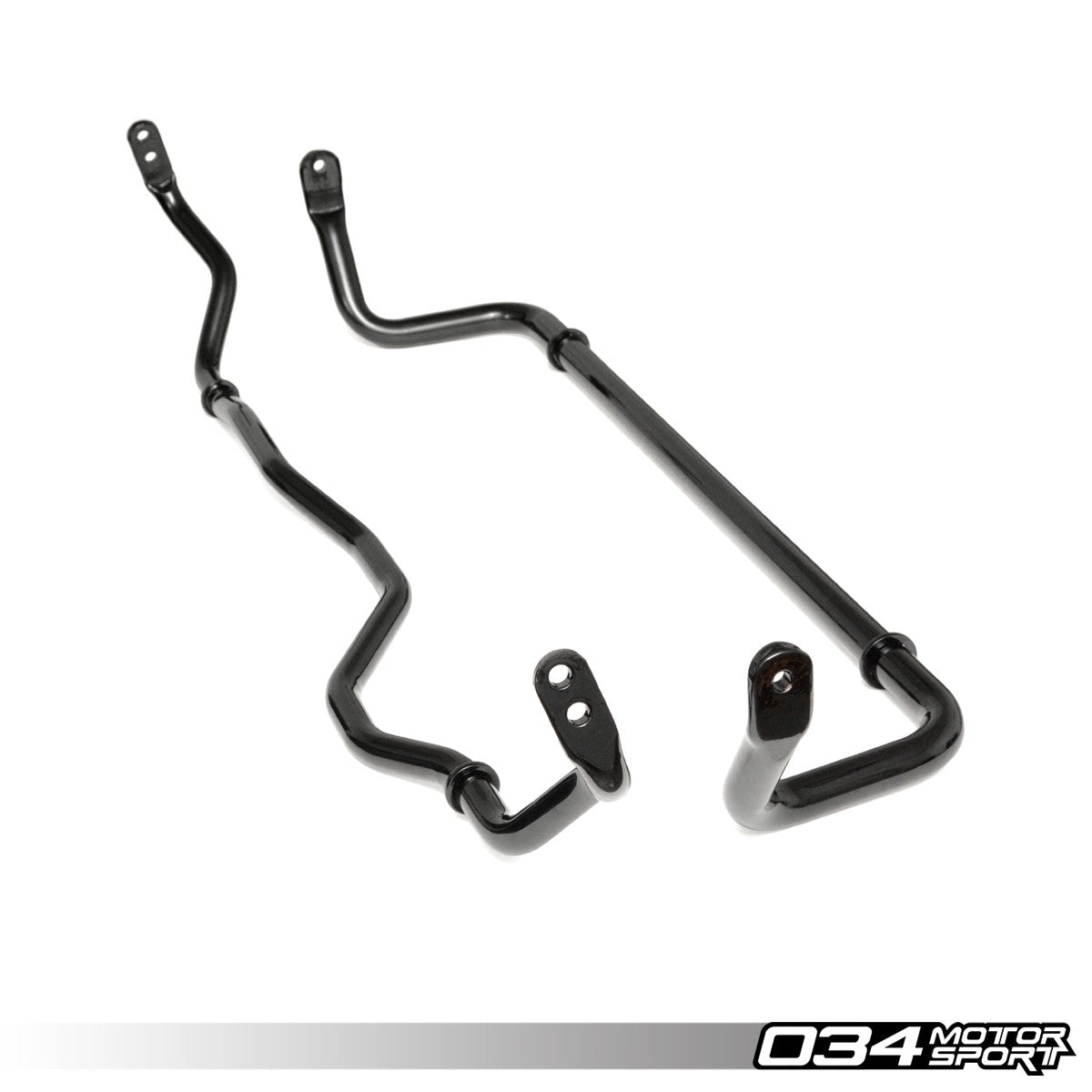

Front Sway Bar Features:

  • 49.2% Increased Sway Bar Rate (Over Factory A4 28.19mm, 0.125 Wall Thickness Hollow Front Sway Bar)
  • 28.6mm Diameter, 0.250 Wall Thickness
  • Hollow Design with Thicker Walls Compared to Factory Bar

Rear Sway Bar Features:

  • 2-Way Adjustable
    • Soft Setting - 259.3% Increased Sway Bar Rate
    • Firm Setting - 305.8% Increased Sway Bar Rate
    • (Rate Comparisons to Factory A4 "Sport" 18.5mm Hollow Rear Sway Bar)
  • 23.8mm Diameter
  • One-Piece Design with Solid Spring Steel Construction

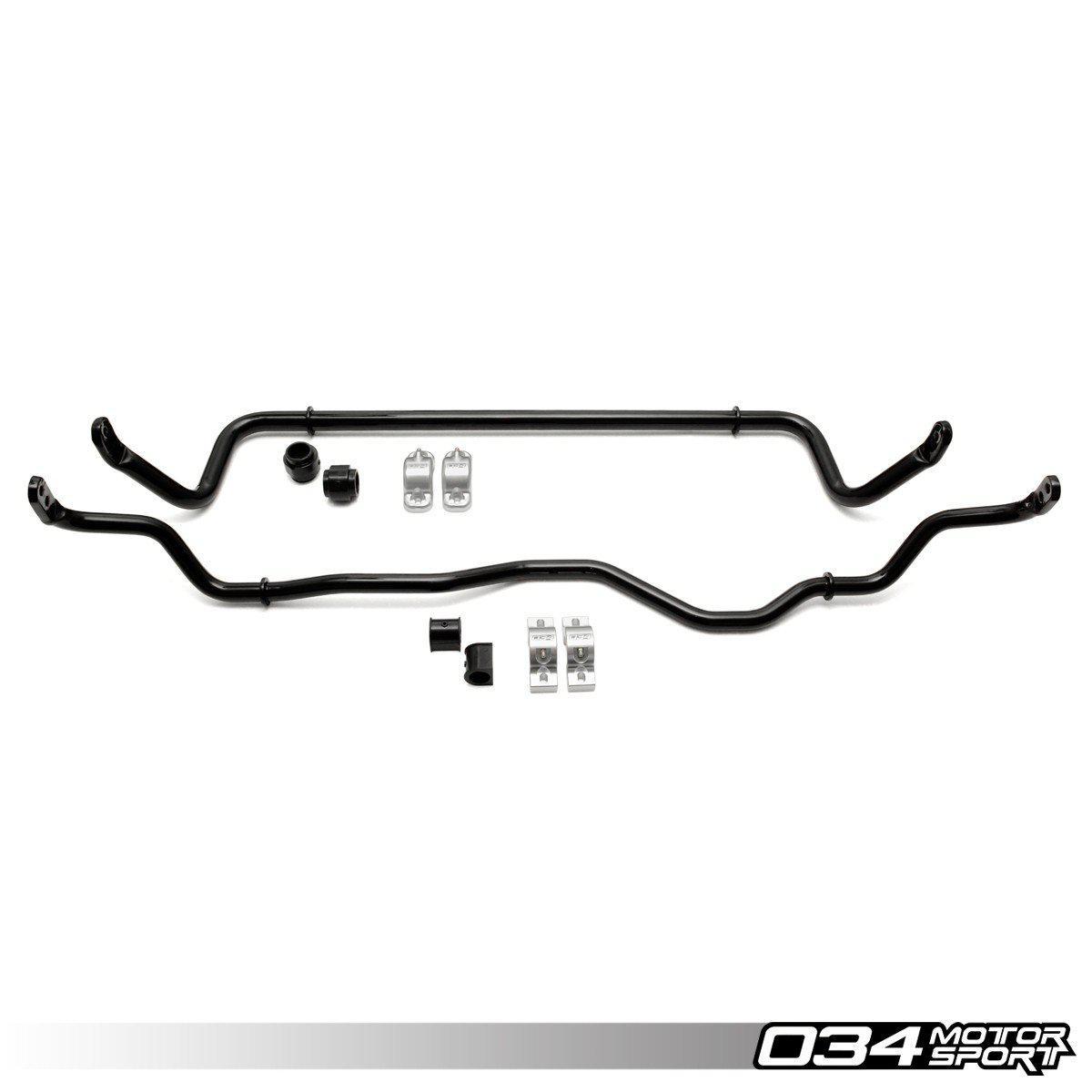

What's Included:

  • 034Motorsport Front Sway Bar Upgrade
  • 034Motorsport 23.8mm Solid Adjustable Rear Sway Bar

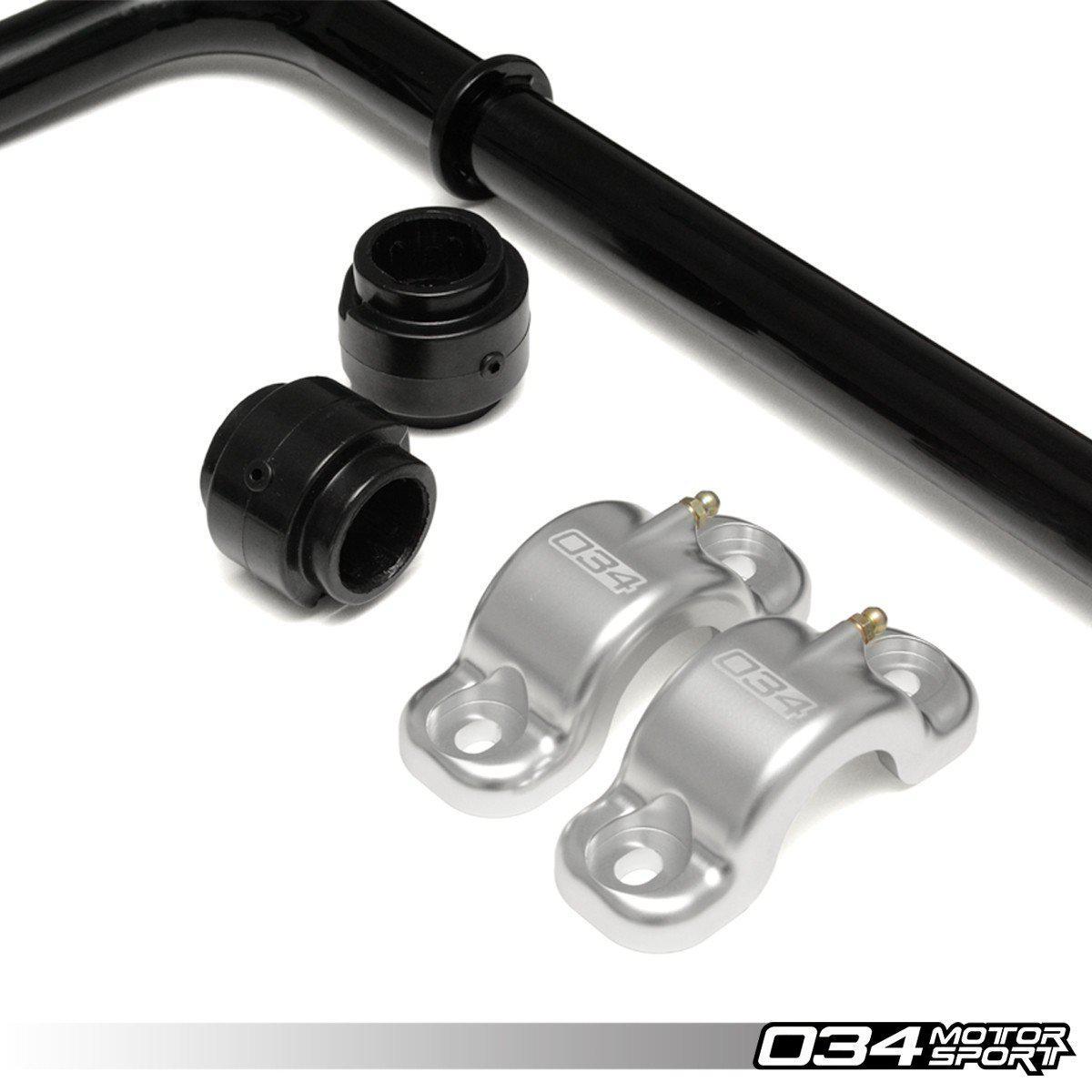

  • Polyurethane Sway Bar Bushings

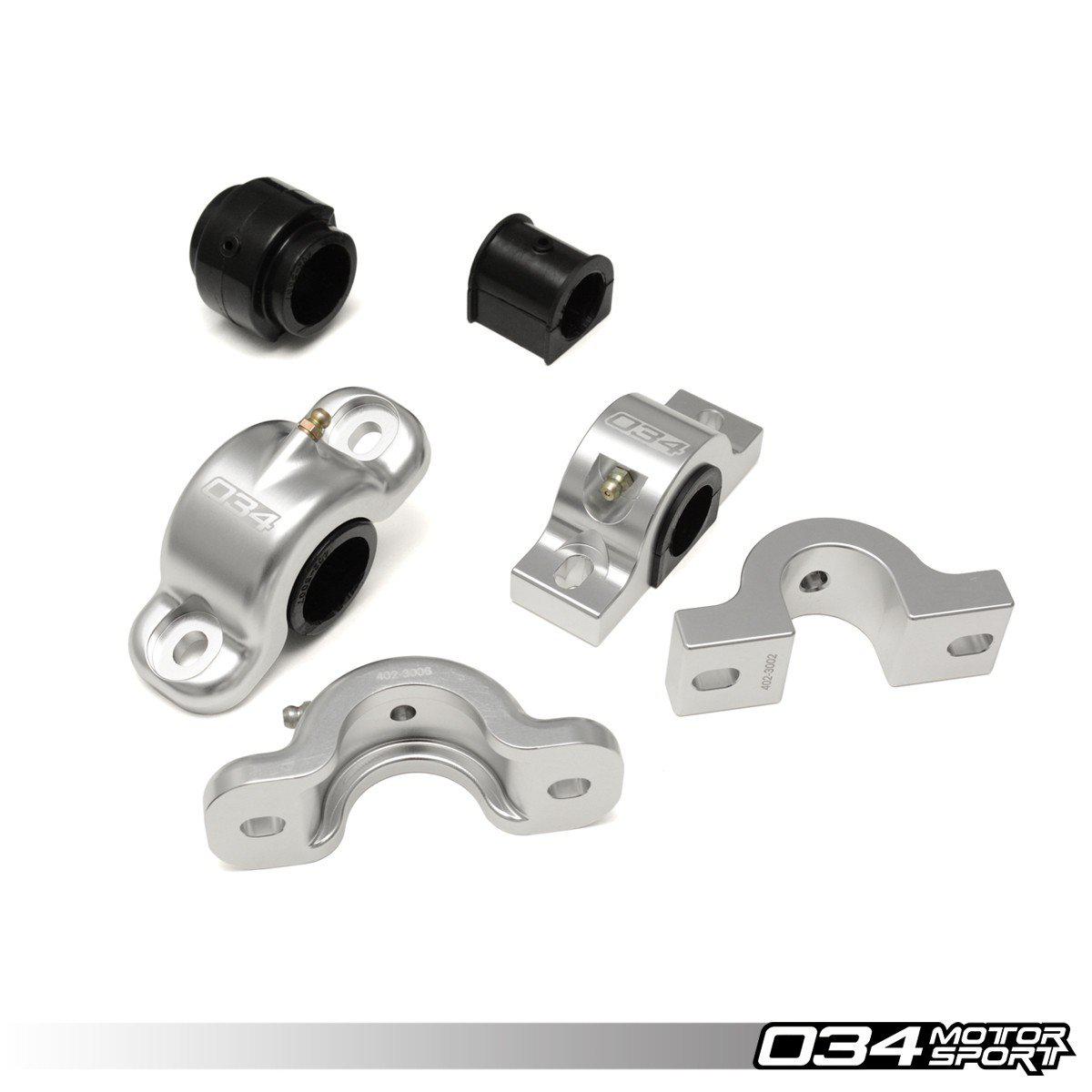

  • Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings

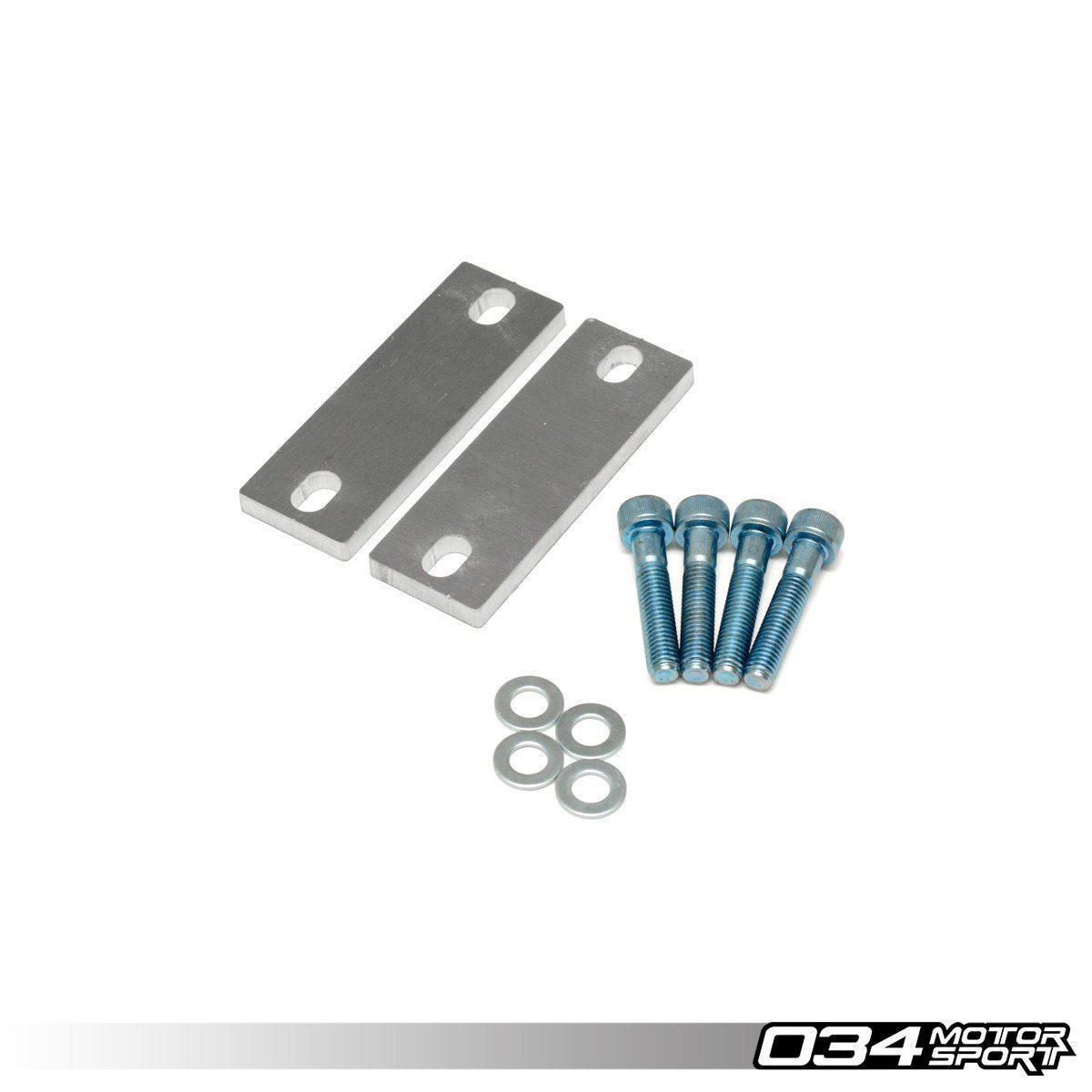

  • Installation Hardware Kit

Fitment:

  • 2017 - Present Audi A4 (B9)
  • 2018 - Present Audi S4 (B9)
  • 2018 - Present Audi A5 (B9)
  • 2018 - Present Audi S5 (B9)
  • 2018 - Present Audi RS5 (B9)
  • 2017 - Present Audi Allroad (B9)

Installation Instructions:

Please Note: We highly recommend using this upgrade in conjunction with Spherical Rear Sway Bar End Links and Spherical Front Sway Bar End Links for maximum performance. Unlike the 22.2mm Dynamic+ Rear Sway Bar, installing the Track Spec Sway Bar Kit will result in a noticeably firmer ride.
