034Motorsport 2.0T Gen3 (Is38) Performance Software, 8V/8S Audi S3/Tts & MKVII Volkswagen Golf R



SKU: 034-20T-GEN3-IS38-S1

Manufacturer: 034Motorsport

034Motorsport is proud to unveil an all-new line of Performance Software for 8V Audi S3, 8S Audi TTS, and MkVII Volkswagen Golf R models equipped with the EA888 Gen3 2.0T engine and IS38 turbocharger! Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the Simos 18 ECU safely and effectively increase the power output of the 2.0T Gen3 engine. The result is a noticeable improvement in acceleration and throttle response, without any sacrifice in driveability or reliability. 034Motorsport's 2.0T Gen3 Performance Software was developed entirely in-house on 034Motorsport's Development 8V Audi S3. The calibrations were then refined on multiple enthusiast-owned 8V Audi S3 & MkVII Volkswagen Golf R vehicles before release.


Software Features

Dyno Proven Gains
Increased Horsepower & Torque Throughout the Powerband
Acceleration Enhancements
Improved Power Delivery, Acceleration, and Driving Characteristics
Multiple Octane Support
Available in 91 Octane and 93 Octane Calibrations
Faster Throttle Response & Improved Precision
Refined Throttle Mapping for Enhanced Throttle Response & Precision
Raised Rev Limit
Raised RPM Limit for Broader Powerband
Speed Limiter Removed
Speed Limiter Removed for Increased Top Speed
Crackle Overrun
Crackle Overrun Enabled in Sport Mode for Stage 2
Port Flashing
Flashed Directly Via the Factory OBD-II Port


034Motorsport EA888 2.0T Gen3 Performance Software Comparison

Stage Fuel Max HP Max TQ Max HP Gain Max TQ Gain Rev Limiter Speed Limiter
Stock 91 Oct 298 HP 291 TQ NA NA 6,800 RPM 150 MPH
Stage 1 91 Oct 351 HP 384 TQ 68 HP @ 5,270 RPM 103 TQ @ 3,225 RPM 7,100 RPM
Stage 1 93 Oct 351 HP 384 TQ 87 HP @ 5,270 RPM 119 TQ @ 3,225 RPM 7,100 RPM
Stage 2 91 Oct 383 HP 385 TQ 90 HP @ 6,350 RPM 109 TQ @ 4,100 RPM 7,100 RPM
Stage 2 93 Oct 386 HP 408 TQ 102 HP @ 4,150 RPM 132 TQ @ 4,100 RPM 7,100 RPM



034Motorsport EA888 2.0T Gen3 Performance Software Stage Descriptions

Stage 1

034Motorsport Stage 1 Performance Software for the EA888 Gen3 2.0 TSI/TFSI engine is engineered to safely increase horsepower and torque with no hardware modifications required. 034Motorsport's proprietary calibrations increase boost while optimizing timing and fueling maps to extract additional power from the 2.0T engine.

Stage 1 Performance Software features a higher redline of 7,100 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.

Stage 2

034Motorsport Stage 2 Performance Software for the EA888 Gen3 2.0 TSI/TFSI engine is engineered to further increase horsepower and torque with the addition of a high-flow downpipe upgrade and performance air intake. 034Motorsport's calibrations optimize the factory ECU for these hardware modifications in order to extract additional power from the 2.0T engine.

Stage 2 Performance Software features a higher redline of 7,100 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and allow for further control of the vehicle when driving on track. In addition, Stage 2 Peformance Software features a Crackle Overrun in Sport Mode, which produces nice pops and crackles from the exhaust during deceleration.

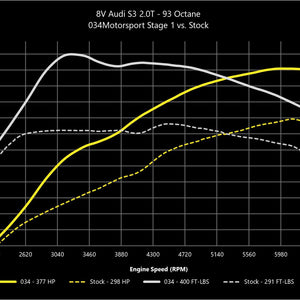

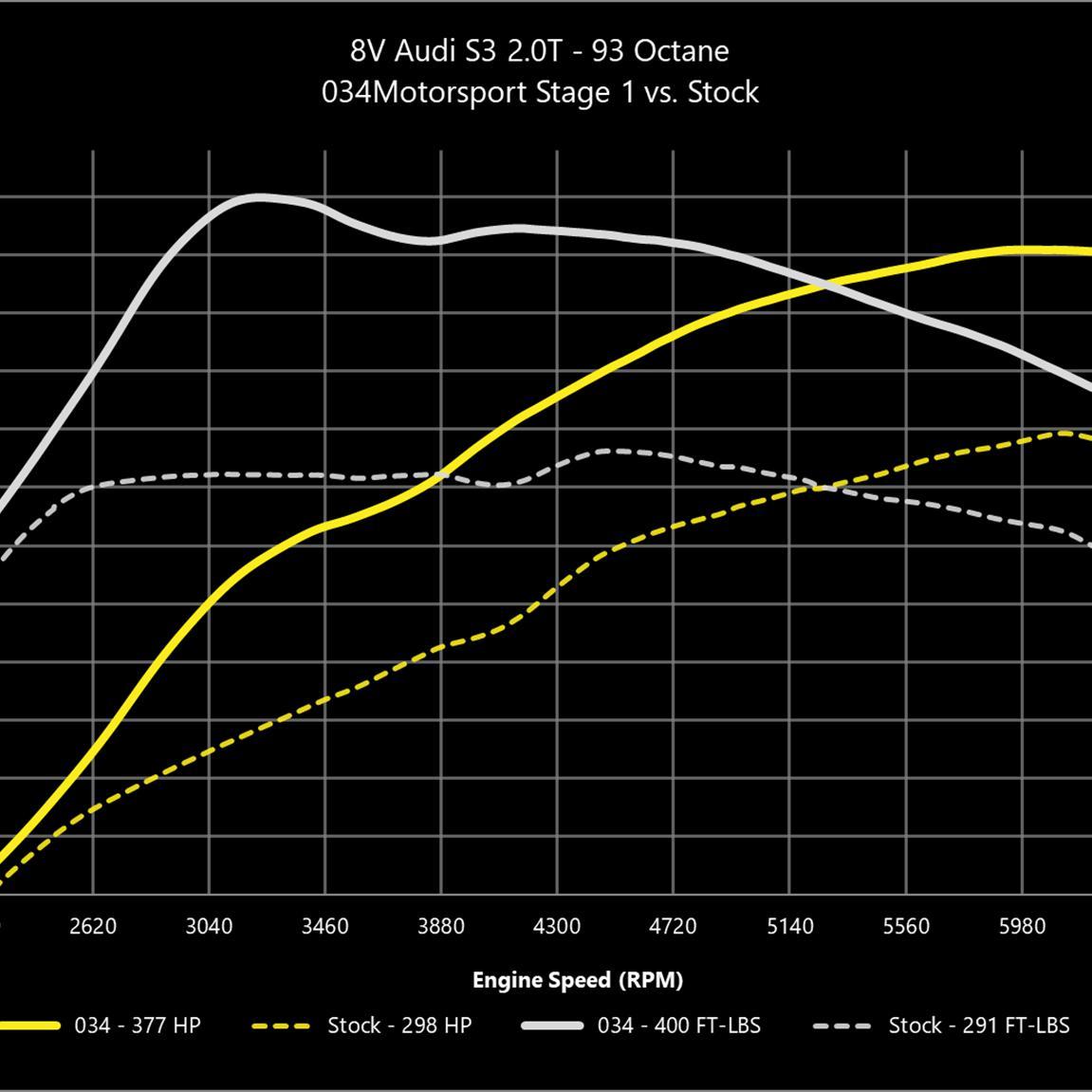

034Motorsport EA888 2.0T Gen3 Performance Software Dyno Charts


Select Dyno Chart:






034Motorsport EA888 2.0T Gen3 Performance Software Hardware Requirements

Stage Fuel Required Modifications Recommended Modifications
Stage 1 91 Oct No hardware required Intake, Intercooler, Res-X, DSG Software (if applicable)
Stage 1 93 Oct No hardware required IntakeIntercoolerRes-XDSG Software (if applicable)
Stage 2 91 Oct Downpipe, Intake IntercoolerRes-X, DSG Software (if applicable)




034Motorsport Dynamic+ End User Flashing Kit

034Motorsport's Dynamic+ End User Flashing Kit allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.

Requirements for End User Flashing:

  • Windows 7 or Windows 10 Laptop with Available USB Port
  • Power Supply for Laptop
  • Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
  • CTEK Trickle Charger (Or Similar)
  • Available Electrical Outlets

034Motorsport End User Flashing Kit Contents:

  • 034Motorsport OBD-II Adapter
  • USB-A to USB-B Cable
  • Carrying Case
  • User Credentials (Provided Via Email)





EMISSIONS DISCLAIMER

  • This product is sold for racing and off-road use only.
  • This product is not CARB or EPA compliant, this product is not authorized for use in California on smog controlled vehicles.
  • By purchasing this product, you understand this product is sold for competition use on closed roads and is not legal for use in highway or street vehicles.
