034Motorsport 2.0 TSI Performance Software, MKV/MKVI Volkswagen & 8J/8p Audi A3/Tt

034Motorsport

034-20-TSI-S1


034Motorsport is proud to unveil an all-new line of Performance Software for MkV/MkVI Volkswagen GLI/GTI/Eos/Passat/CC/Tiguan and 8J/8P Audi A3/TT model powered by the EA888 Gen 1 2.0 TSI engine!

Flashed directly through your vehicle's OBD-II port, 034Motorsport’s proprietary calibrations for the Bosch MED17 ECU safely and effectively increase the power output of the 2.0 TSI engine. The result is a noticeable improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.

034Motorsport's EA888 Gen 1 2.0 TSI Performance Software was developed entirely in-house on 034Motorsport's Development MkVI Volkswagen GTI. The calibrations were then refined on multiple enthusiast-owned MkV/MkVI Volkswagen 2.0 TSI and 8J/8P Audi A3/TT 2.0 TSI vehicles before release.



Software Features

Dyno Proven Gains
Increased Horsepower & Torque Throughout the Powerband
Acceleration Enhancements
Improved Power Delivery, Acceleration, and Driving Characteristics
Multiple Octane Support
Available in 91 Octane, 93 Octane, and 100 Octane Calibrations
Faster Throttle Response & Improved Precision
Refined Throttle Mapping for Enhanced Throttle Response & Precision
Raised Rev Limit
Raised RPM Limit to 7,000 for Broader Powerband
Speed Limiter Removed
Speed Limiter Removed for Increased Top Speed
Crackle Overrun
Crackle Overrun Enabled in Sport Mode for Stage 2
Port Flashing
Flashed Directly Via the Factory OBD-II Port


034MOTORSPORT EA888 Gen 1 2.0 TSI MED17 ECU PERFORMANCE SOFTWARE COMPARISON

Stage Fuel Max HP Max TQ Max HP Gain Max TQ Gain Rev Limiter Speed Limiter
Stock 91 Oct 203 HP 218 TQ NA NA 6,800 RPM 205kph
Stage 1 91 Oct 231 HP 272 TQ 40 HP @ 4,000 RPM 54 TQ @ 3,800 RPM 7,000 RPM
Stage 2 91 Oct 264 HP 304 TQ 68 HP @ 4,200 RPM 88 TQ @ 4,000 RPM 7,000 RPM
Stage 2 93 Oct 266 HP 306 TQ 68 HP @ 4,150 RPM 89 TQ @ 4,000 RPM 7,000 RPM
Stage 2 100 Oct 271 HP 312 TQ 73 HP @ 4,200 RPM 96 TQ @ 4,000 RPM 7,000 RPM





034MOTORSPORT EA888 Gen 1 2.0 TSI MED17 ECU PERFORMANCE SOFTWARE STAGE DESCRIPTIONS

STAGE 1

034Motorsport Stage 1 Performance Software for the EA888 Gen 1 2.0 TSI engine is engineered to safely increase horsepower and torque with no hardware modifications required. 034Motorsport's proprietary calibrations increase boost while optimizing timing and fueling maps to extract additional power from the 2.0 TSI engine.

Stage 1 Performance Software features a higher redline of 7,000 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation. Stage 1 Performance Software also enables left foot braking, which allows for further control of the vehicle when driving on track.

STAGE 2

034Motorsport Stage 2 Performance Software for the EA888 Gen 1 2.0 TSI engine is engineered to further increase horsepower and torque with the addition of a high-flow downpipe upgrade and performance air intake. 034Motorsport's calibrations optimize the factory ECU for these hardware modifications in order to extract additional power from the 2.0 TSI engine.

Stage 2 Performance Software features a higher redline of 7,000 RPM, resulting in a broader, more usable powerband. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation. Stage 2 Performance Software also enables left foot braking, which allows for further control of the vehicle when driving on track.

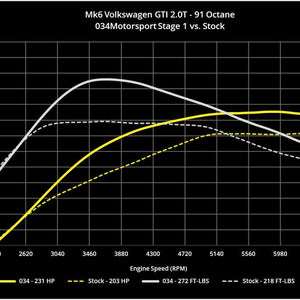

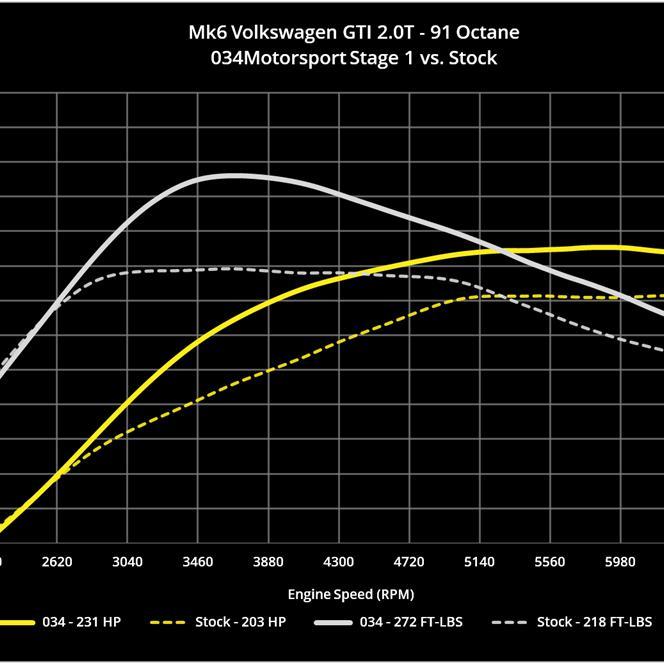

034MOTORSPORT EA888 Gen 1 2.0 TSI MED17 ECU PERFORMANCE SOFTWARE DYNO CHARTS


Select Dyno Chart:







034MOTORSPORT EA888 Gen 1 2.0 TSI MED17 ECU PERFORMANCE SOFTWARE HARDWARE REQUIREMENTS



Stage Required Modifications Recommended Modifications
Stage 1
  • No hardware required

Stage 2
  • High-Flow Downpipe Upgrade
  • Performance Air Intake System




034Motorsport Dynamic+ End User Flashing Kit

034Motorsport's Dynamic+ End User Flashing Kit allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.

Requirements for End User Flashing:

  • Windows 7 or Windows 10 Laptop with Available USB Port
  • Power Supply for Laptop
  • Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
  • CTEK Trickle Charger (Or Similar)
  • Available Electrical Outlets

034Motorsport End User Flashing Kit Contents:

  • 034Motorsport OBD-II Adapter
  • USB-A to USB-B Cable
  • Carrying Case
  • User Credentials (Provided Via Email)





EMISSIONS DISCLAIMER

  • This product is sold for racing and off-road use only.
  • This product is not CARB or EPA compliant, this product is not authorized for use in California on smog controlled vehicles.
  • By purchasing this product, you understand this product is sold for competition use on closed roads and is not legal for use in highway or street vehicles.
