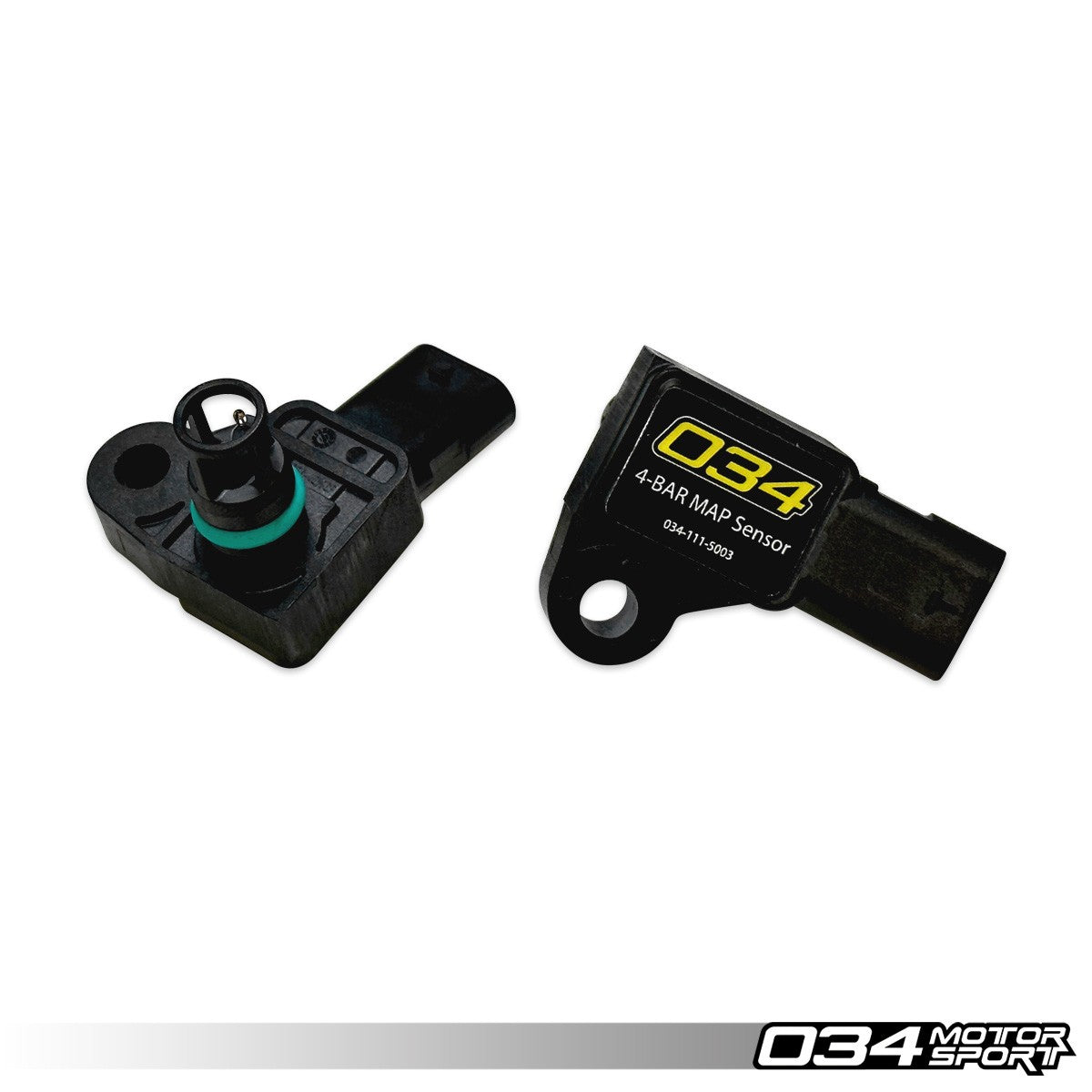

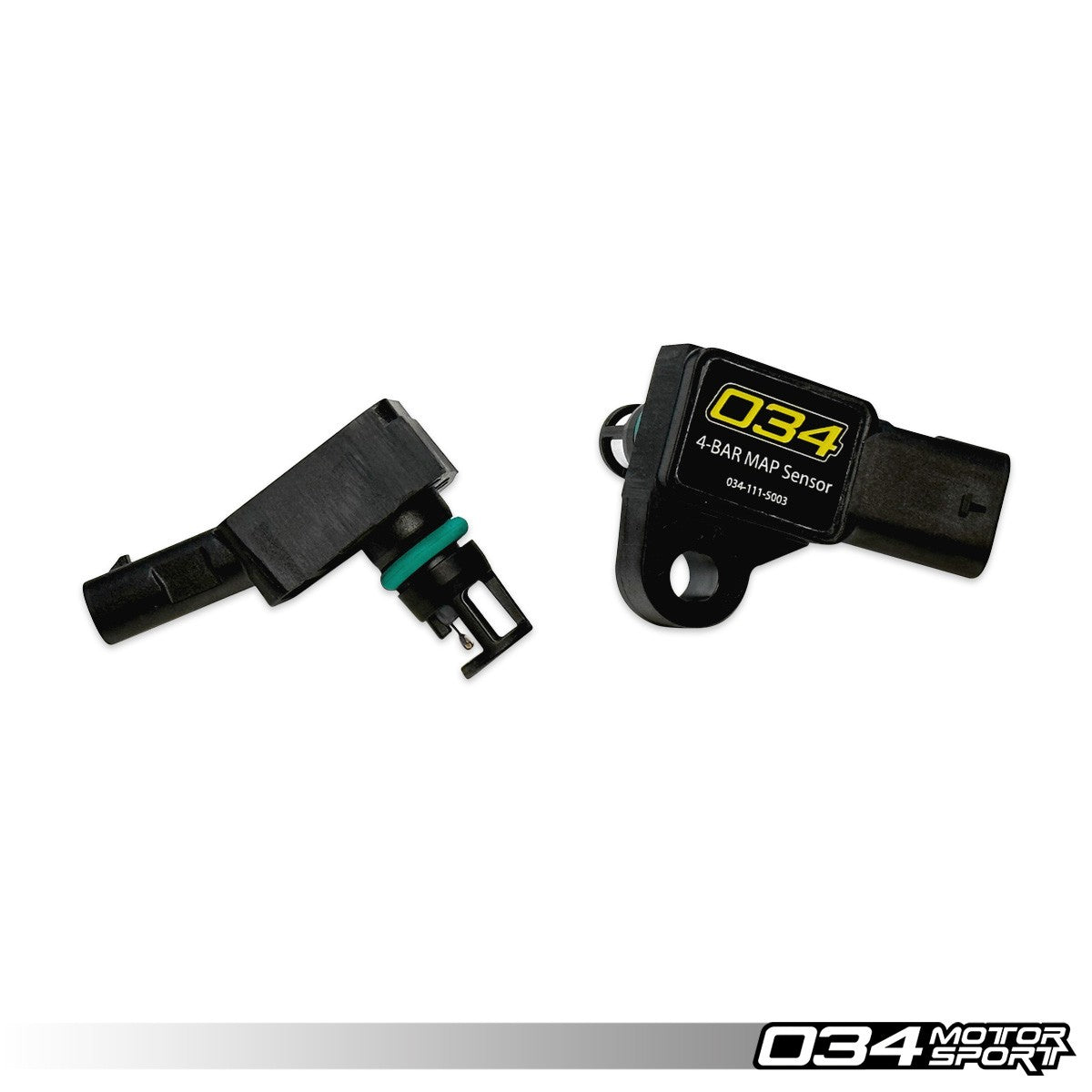

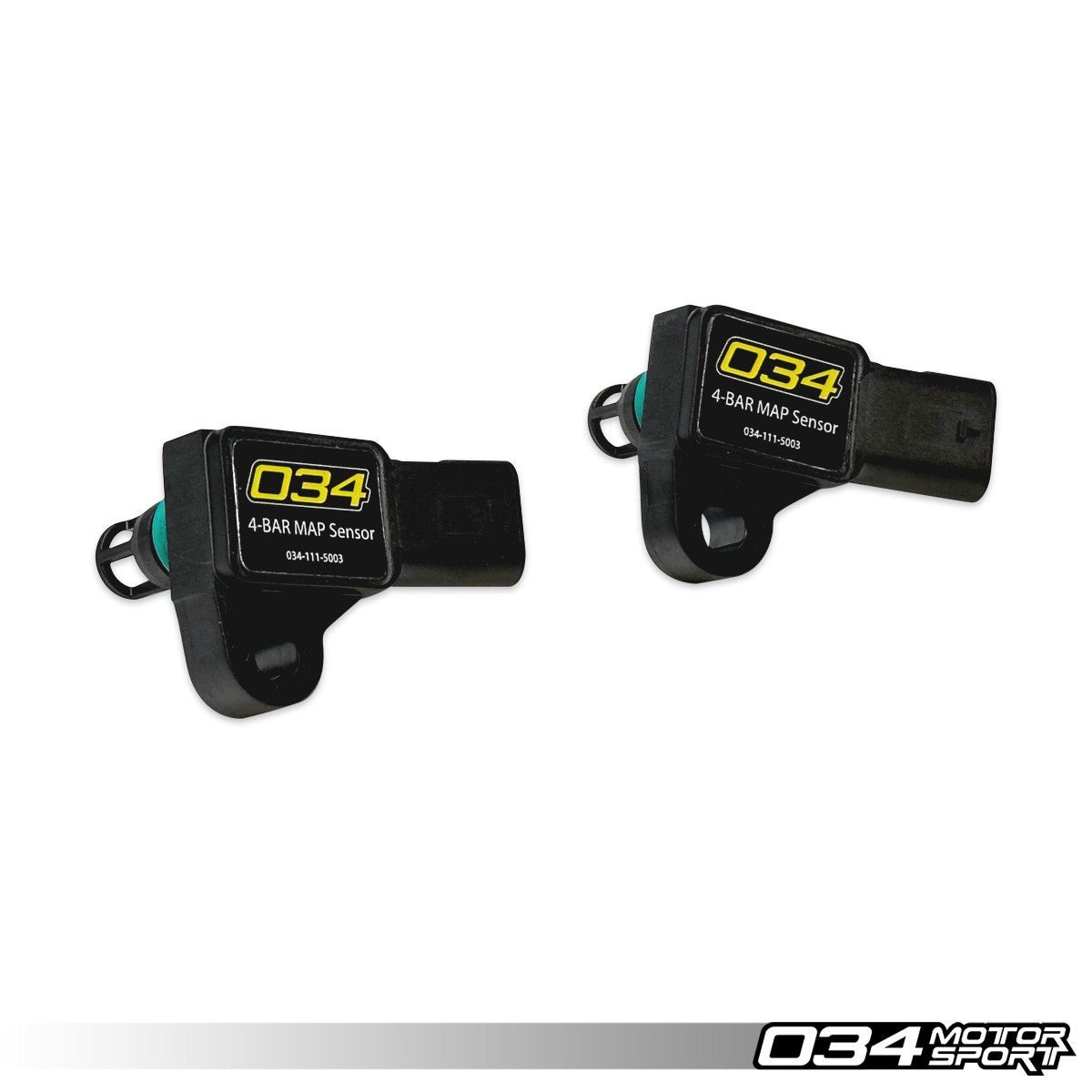

034Motorsport 4 Bar MAP Sensors, EA839 2.9T/3.0T

Product Description:

The 034Motorsport 4 Bar MAP Sensors are designed to replace the factory 3 Bar MAP sensors on the EA839 2.9T/3.0T engine. These sensors are a required upgrade for 034Motorsport Dynamic+ Stage 3 Software. Included are two 034Motorsport 4 Bar MAP Sensors which plug directly into the OEM harness and are are installed by utilizing 034Motorsport's included hardware and removing the retention clip on the factory charge pipes as noted in the install instructions. The 034Motorsport 4 Bar MAP Sensors are compatible with Wagner aftermarket charge pipes utilizing Wagner's included hardware.

Features:

• 4-Bar MAP Sensors Designed to Replace the Factory 3-Bar MAP Sensors on the EA839 2.9T/3.0T Engines
• Enables Calibrations Above the Factory MAP Sensor 3-Bar Limit
• Specific Software Calibration is Required to Utilize These Sensors
• Manufactured by an OE Supplier to 034Motorsport Specifications
• Sensors Plug Directly into the OE Harness
• Directly Replaces Stock 3-Bar Sensors

OE Part Interchange:

• 06E 906 051 AB
• 06E 906 051 AG
• 06E 906 051 AC

What’s Included:

• 2x 4-Bar MAP Sensors
• Installation Hardware
