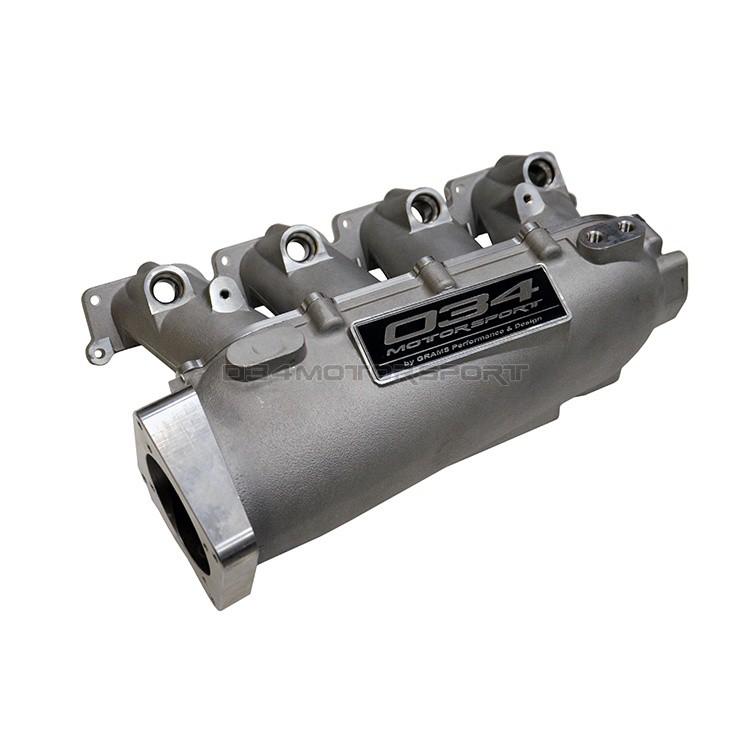

034Motorsport High Flow Intake Manifold, Transverse 1.8T, Large Port

034-108-7000

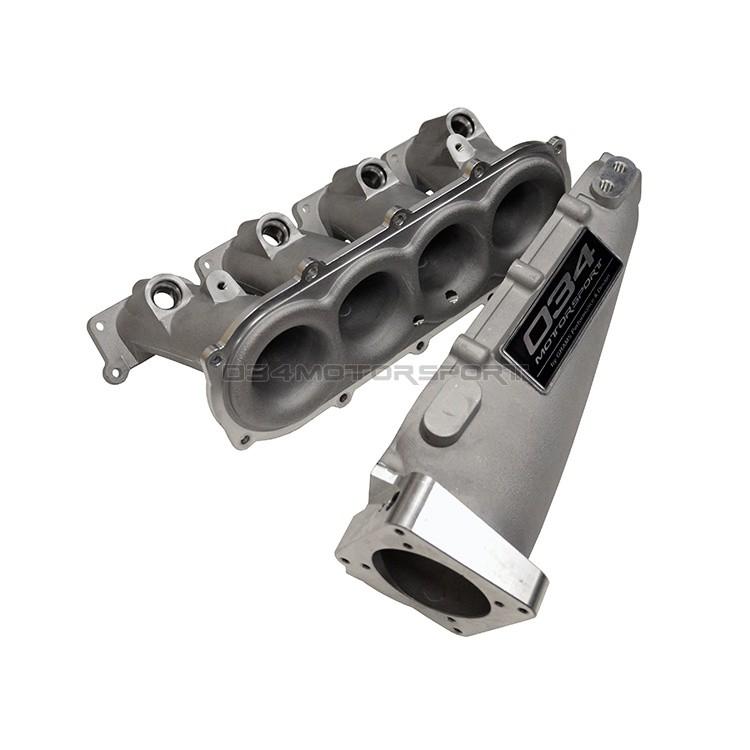

034Motorsport's Transverse 1.8T High Flow Intake Manifold was designed to be a direct bolt-in replacement for the stock intake manifold, and features a modular design, with a rotatable plenum that allows for driver side or passenger side throttle body locations. Featuring a 1.85L plenum, the 034Motorsport High Flow Intake Manifold was engineered not only for high-horsepower, big turbo builds, but also to offer noticeable improvements in low-end and midrange power, even on stock turbo configurations.

Features:

  • Manufactured from A356 Using Low-Pressure Die Casting for Superior Quality and Surface Finish
  • High Flow and High Velocity Tapered Runners
  • Large Low-Profile Airhorns and Smooth Plenum Interior for Improved Airflow Characteristics
  • Angled Runners and Indexed Throttle Body Position for Optimal Fitment and Intake Routing
  • "Stealth" Mounting Bosses for Nitrous or Methanol Injection
  • Provisions for Stock or 80mm Throttle Bodies
  • Complete with Vacuum Provisions - No Extra Vacuum Manifold Needed!
  • Available In Large Port and Small Port Configurations
  • Developed in partnership with GRAMS Performance

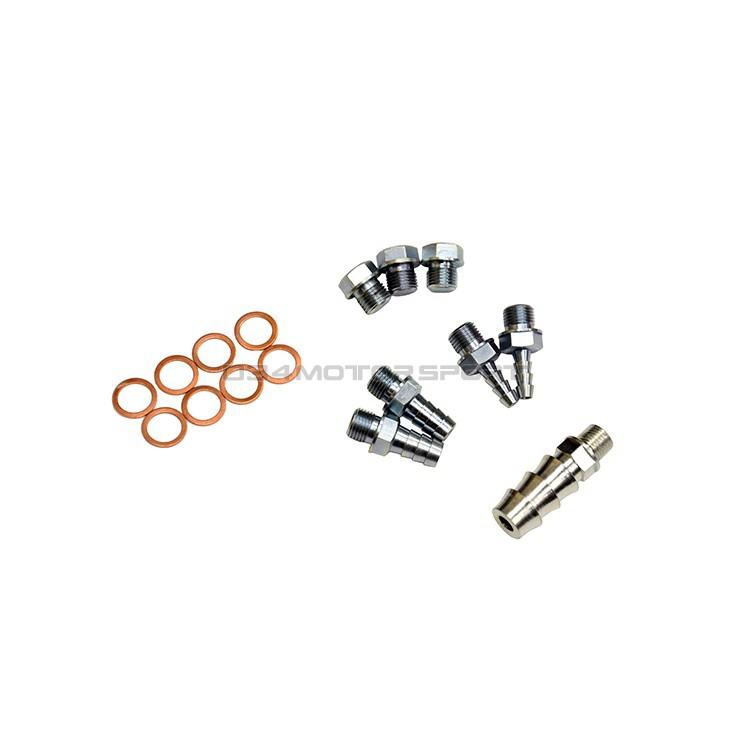

What's Included:

  • 034Motorsport Transverse 1.8T High Flow Intake Manifold
  • Vacuum Port Fittings
  • Vacuum Port Plugs
  • Copper Sealing Washers
  • Plenum-to-Runner Gasket
  • Plenum-to-Runner Hardware

Fitment:

  • 1996 - 2003 Audi A3/S3 (8L)
    • 1.8T (180HP & 225HP)
  • 1998 - 2006 Audi TT (8N)
    • 1.8T (180HP & 225HP)
  • 1999 - 2005 Volkswagen Golf / GLI / GTI / Jetta / New Beetle (MkIV)
    • 1.8T

Runner Balance:

  • Runner 1 - 290.424839 CFM
  • Runner 2 - 289.215817 CFM
  • Runner 3 - 288.897168 CFM
  • Runner 4 - 289.169699 CFM

Please Note:

  • The plenum-to-runner bolts should be torqued to 7nm or 62in lbs.
  • The small port is the exact same manifold as the large port, and can be bored out for large port applications if desired.

Stock Turbo Dyno Results (Small Port):

034Motorsport Transverse Audi/Volkswagen 1.8T High Flow Intake Manifold Stock Turbo Dyno Results

GTX2867R Turbo Dyno Results (Small Port):

034Motorsport Transverse Audi/Volkswagen 1.8T High Flow Intake Manifold GT2876R Dyno Results

CFD Analysis:

1.8T Manifold Runner Balance

CAD Rendering:

1.8T Manifold CAD Render
