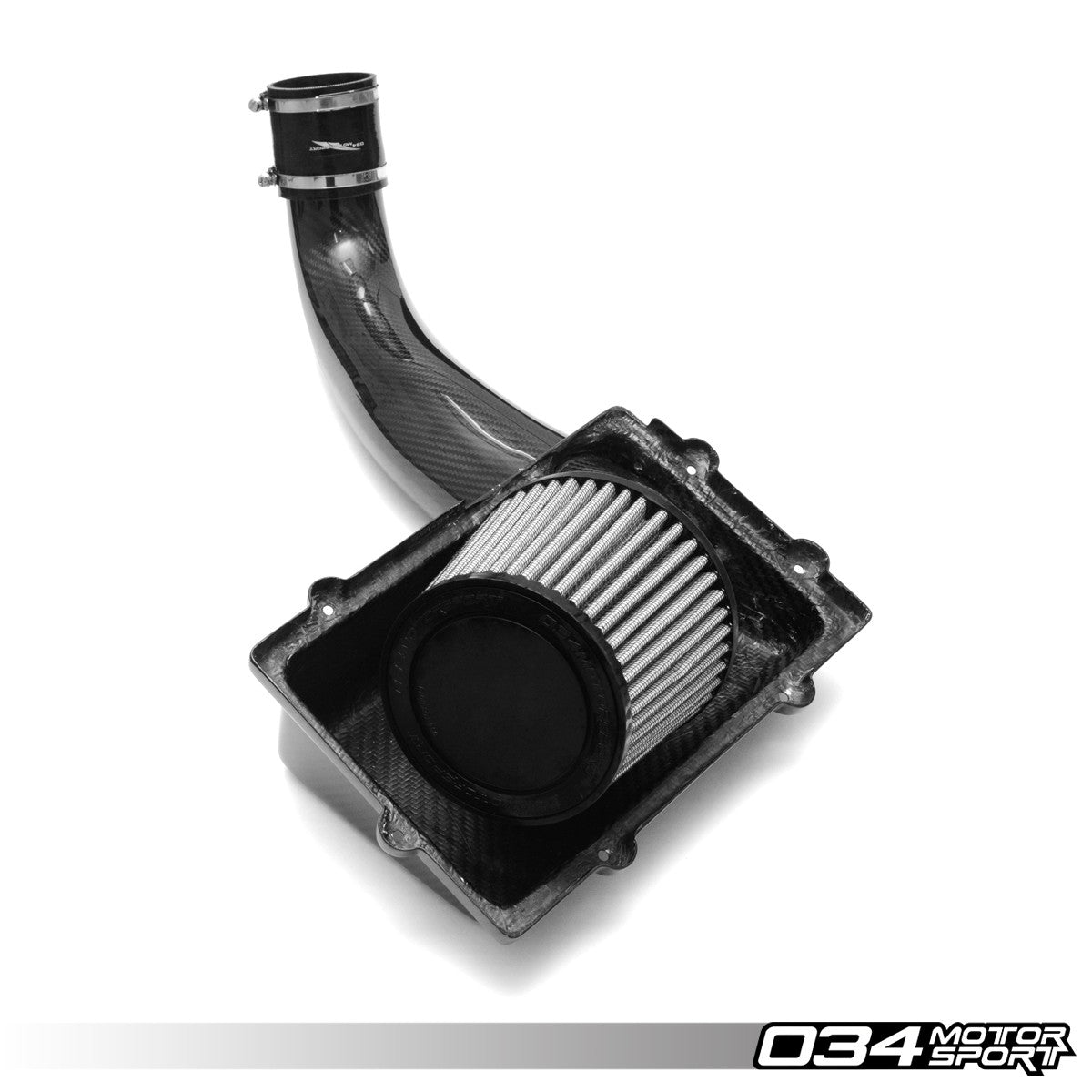

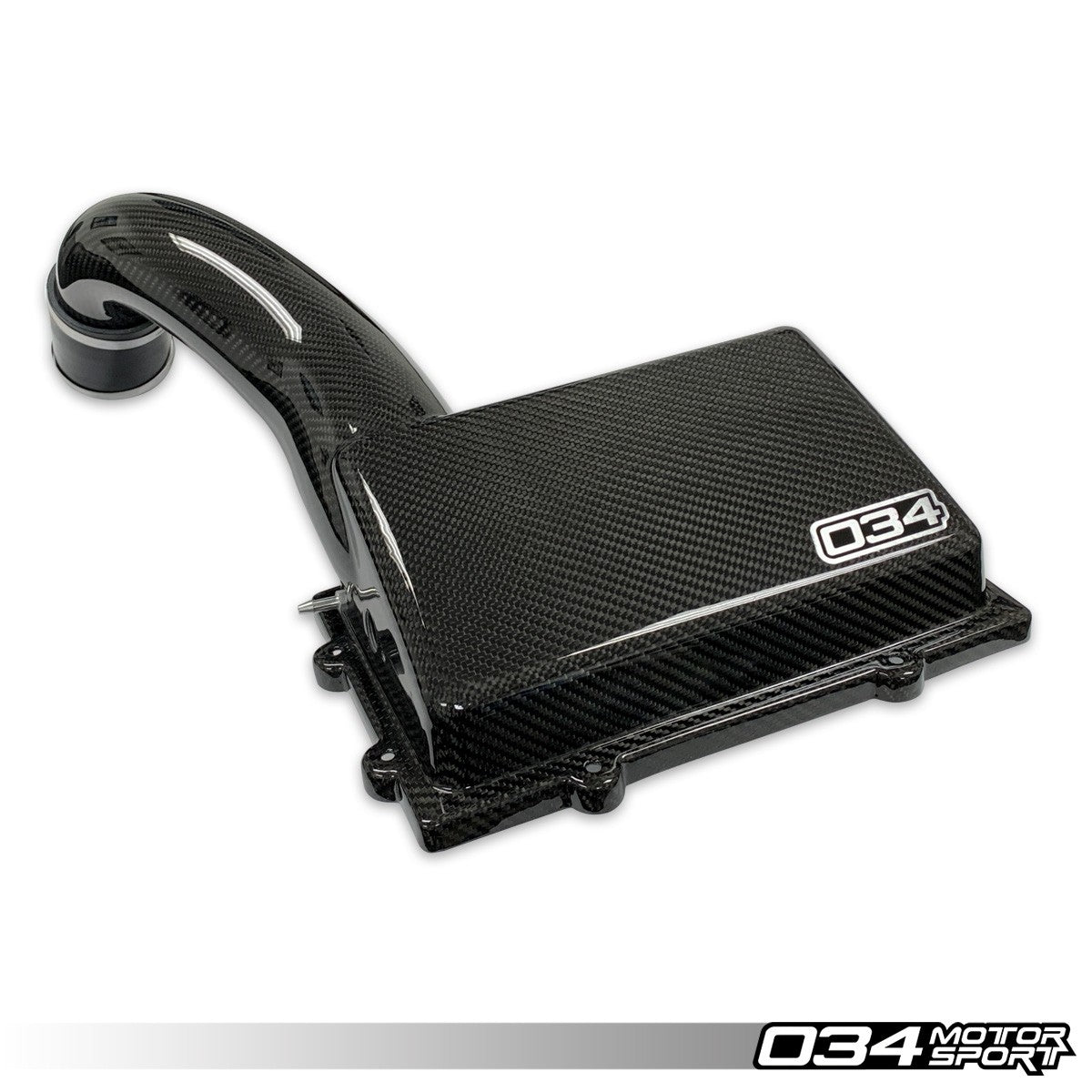

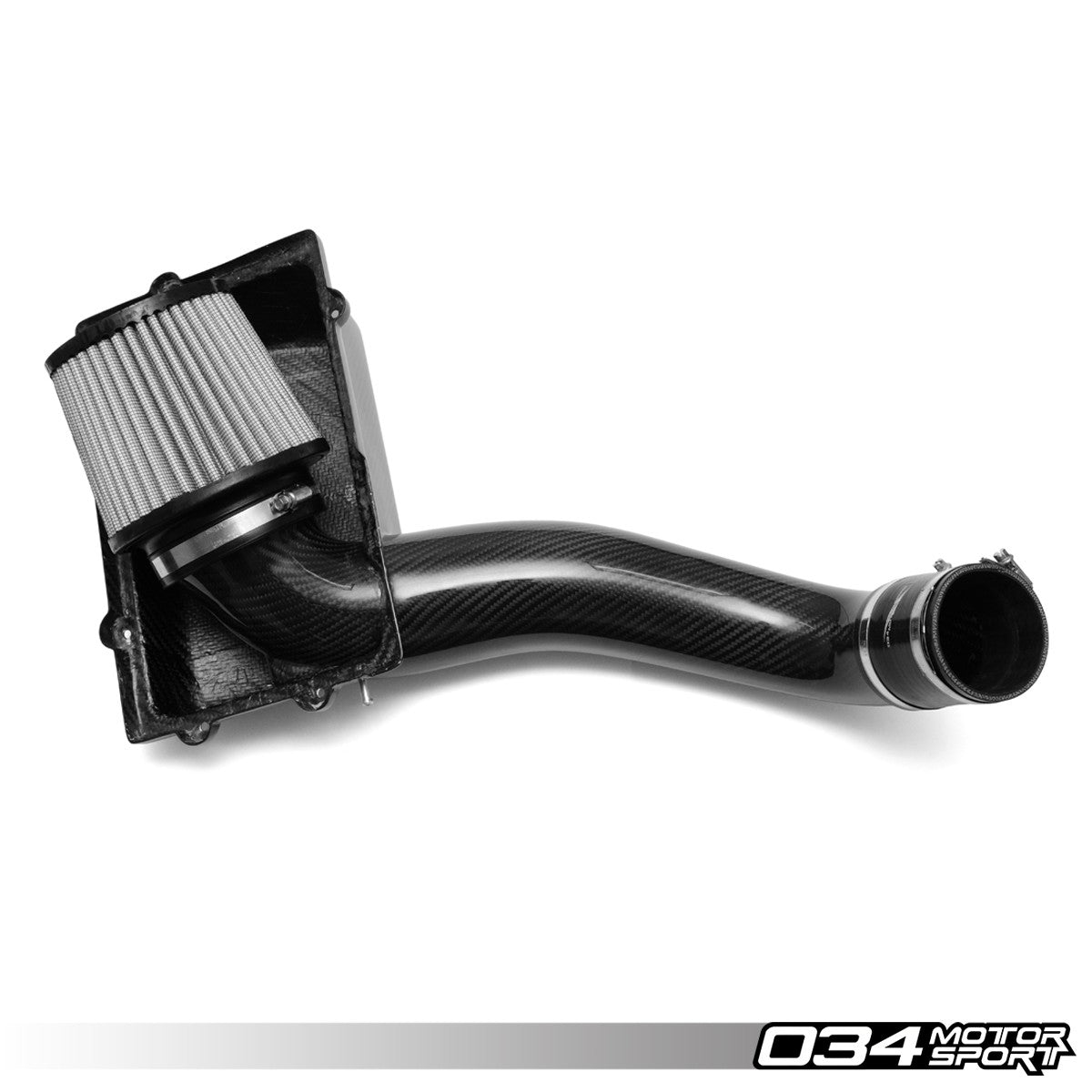

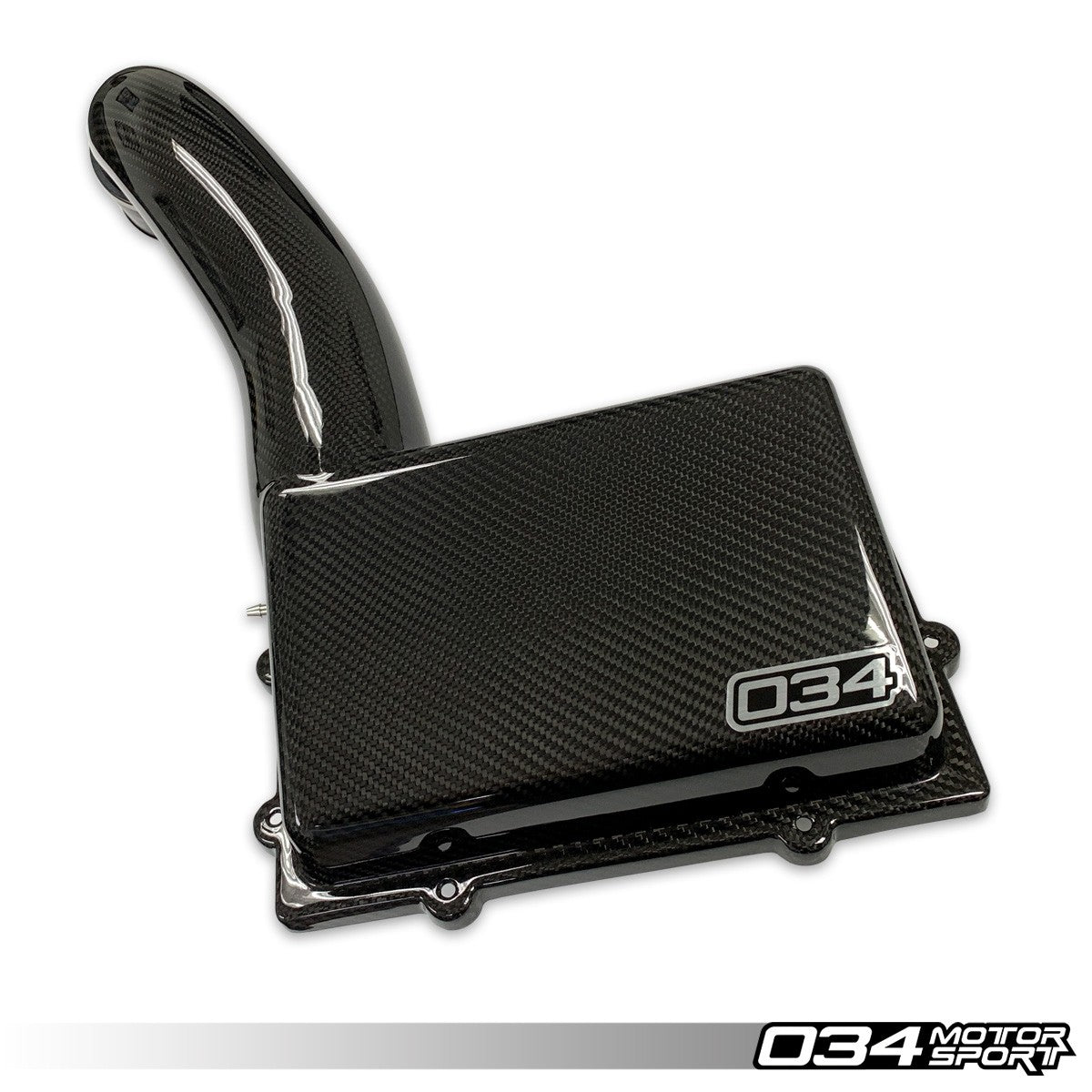

X34 Carbon Fiber MQB Cold Air Intake System, 8V Audi A3/S3/Tt/Tts & MKVII Vw Golf/GTI/R & MKVII Vw Gli, 1.8T/2.0T Gen3

No reviews

034-108-1005

034Motorsport is proud to announce the X34 Carbon Fiber MQB Cold Air Intake System for the 1.8T & 2.0T EA888 Gen3 engines found in the 8V/8S Audi A3/S3/TT/TTS, MkVII Volkswagen Golf/GTI/R & MkVII Volkswagen GLI!

034Motorsport’s engineers invested significant effort in developing a comprehensive OEM+ cold air intake solution for the EA888 1.8T/2.0T Gen3, which provides noticeable gains in horsepower and torque over the well-designed factory airbox. Throughout the development process, multiple designs were modeled, prototyped, and tested, culminating in this elegantly-engineered Carbon Fiber Cold Air Intake System.

Optimizing Airflow

034Motorsport X34 MQb Audi/Volkswagen Carbon Fiber Air Intake Flow Analysis

034Motorsport engineers started by identifying the shortcomings of the factory intake system to determine which components restricted airflow to the turbocharger inlet. While the factory lower airbox and fresh air duct to the core support were more than sufficient for increased power levels, the factory air filter, upper airbox, and turbo inlet tube were deemed too restrictive, even with the factory turbocharger.

X34 MQB Audi/Volkswagen 1.8T/2.0T Gen3 Cold Air Intake

034Motorsport's mechanical engineers scanned the factory engine bay and modeled a one-piece unit to replace the factory intake tube and upper airbox. By eliminating the multiple couplers, transitions, and jagged features in the factory upper airbox and intake tube, 034Motorsport's engineering team was able to drastically reduce turbulence in the intake tract, and virtually eliminate pressure drop in the intake system before the turbo inlet.

Multiple iterations were prototyped in plastic using 034Motorsport's in-house FDM 3D printer and thoroughly tested. Ultimately, the design called for a fully-enclosed unit featuring to ensure cold air was fed to a massive 4" inlet at the air filter and a large-diameter one-piece intake tube with smooth transitions all the way back to the factory turbo inlet.

True Cold Air Intake

8V Audi S3 (MQB) Cold Air Intake Installed

To ensure that the X34 MQB Cold Air Intake System draws in cool, dense air, the system is manufactured entirely from carbon fiber, and completely enclosed to prevent hot air from the engine bay entering the intake tract. By bolting to the factory lower airbox, this design allows the enclosed high-flow conical filter to breathe fresh, cold air from the factory inlet duct before the radiator.

Performance Air Filter

X34 MQB Audi/Volkswagen 1.8T/2.0T Gen3 Air Filter

The 034Motorsport Carbon Fiber Cold Air Intake system houses a high-flow conical air filter with a masive 4" inlet and double-layer pleated cotton filtration medium. This air filter design offers increased flow through an enlarged filtration surface, while ensuring superior filtration.

OEM+ Fit & Finish

034Motorsport carefully selected the carbon fiber weave on the intake tube and upper airbox heat shield to match the factory carbon fiber engine trim found in Audi RS-model engine bays. The 034Motorsport MQB Audi/Volkswagen 1.8T/2.0T Cold Air Intake System was designed to fit like a factory part, and mates directly to the turbo inlet pipe and factory lower airbox to provide an OEM+ look.

Dyno-Verified Wheel Horsepower & Torque Gains

034Motorsport's engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the 034Motorsport Audi/Volkswagen MQB Cold Air Intake System provided substantial increases in horsepower and torque on both stock vehicles and ones with upgraded tunes alike.

Peak Wheel Horsepower & Torque on Stage 1 2015 Volkswagen GTI:

  • Stock Intake: 226 Wheel Horsepower / 296 Wheel Foot-Pounds of Torque
  • X34 Intake: 235 Wheel Horsepower / 305 Wheel Foot-Pounds of Torque
  • Peak Horsepower Gain: 31 WHP @6,000 RPM
  • Peak Torque Gain: 27 WTQ @ 6,000 RPM
  • See Dyno Chart

Peak Wheel Horsepower & Torque on Stock 2016 Audi S3:

  • Stock Intake: 232 Wheel Horsepower / 241 Wheel Foot-Pounds of Torque
  • X34 Intake: 240 Wheel Horsepower / 248 Wheel Foot-Pounds of Torque
  • Peak Horsepower Gain: 24 WHP @ 6,400 RPM
  • Peak Torque Gain: 20 WTQ @ 6,400 RPM
  • See Dyno Chart

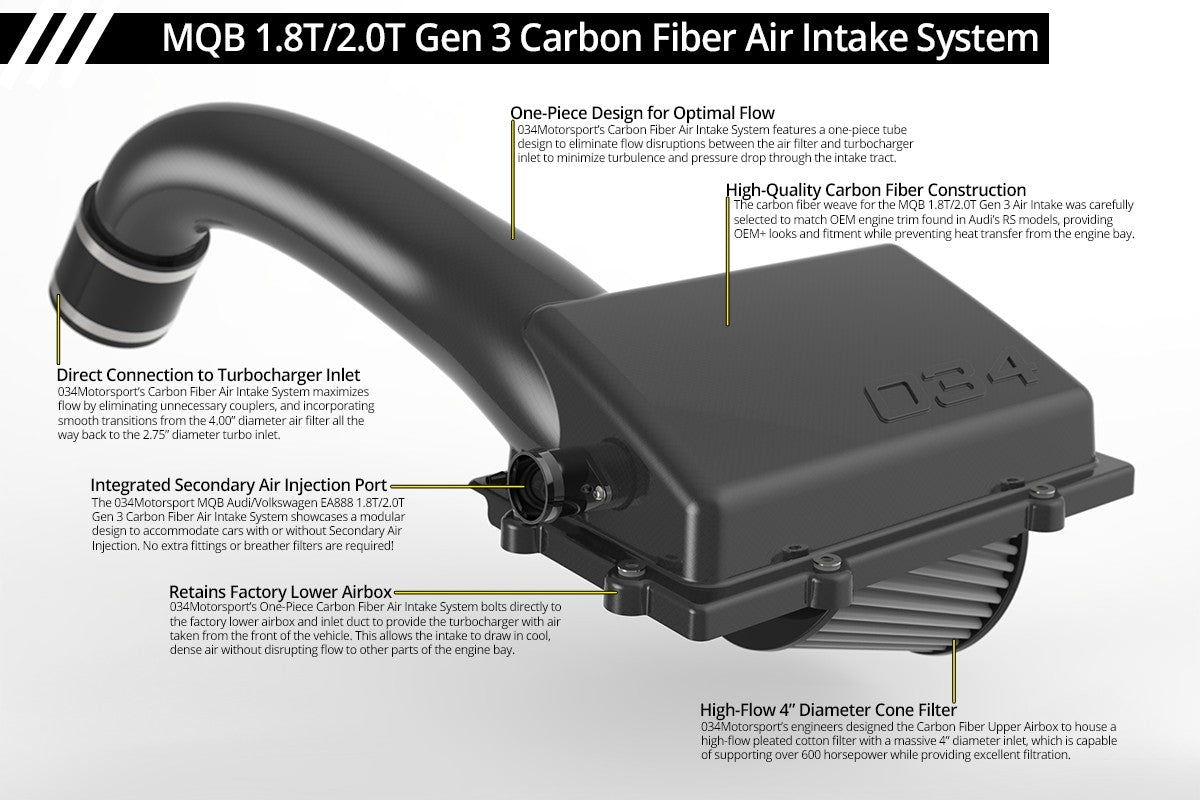

Product Features & Details

Features:

  • Developed In-House by 034Motorsport's Engineering Team
  • One-Piece Design with High-Quality Carbon Fiber Construction
  • OEM+ Fit & Finish Retains Factory Lower Airbox & Inlet Duct
  • Fully-Enclosed Design with Large Diameter 4" Inlet Pleated Cotton Air Filter
  • Large-Diameter CFD-Optimized Air Intake Tube
  • Dyno-Proven Horsepower & Torque Gains
  • Improved Engine & Induction Sounds
  • Increased Throttle Response
  • Improved Airflow from Factory Airbox & Intake Tube
  • Compatible with SAI Equipped & Non-SAI Equipped Vehicles - No Additional Parts Required!
  • Installs Easily in Minutes!

What's Included:

  • 034Motorsport Carbon Fiber MQB Air Intake System
  • 034Motorsport Double-Layer Pleated Cotton Air Filter
  • Integrated SAI Adapter Fitting
  • Installation Hardware
Compatible Vehicles:
  • 2015 - Present Audi A3/S3 (8V - MQB) - 1.8T & 2.0T
  • 2016 - Present Audi TT/TTS (MkIII - MQB) - 2.0T
  • 2015 - Present Volkswagen Golf/GTI/ R (MkVII - MQB) - 1.8T & 2.0T
  • 2019 - Volkswagen GLI (MkVII) - 2.0T (Gen3)
  • Please Note: This comprehensive air intake system is designed to install on vehicles with or without factory secondary air injection (SAI) systems. No additional parts are needed!

Product Information Sheet:

Installation Instructions:

Wheel Horsepower Dyno | Stock Tune - 91 Octane - IS38 | X34 8V Audi S3/TTS Cold Air Intake vs. Stock

034Motorsport MQB Audi/Volkswagen EA888 Gen3 Carbon Fiber Cold Air Intake Dyno

Wheel Horsepower Dyno | Stage 1 Tune - 91 Octane - IS20 | X34 Carbon Fiber Mk7 Golf/GTI Intake vs. Stock

Mk7 GTI Intake Dyno



Note: Not for use on emissions-controlled vehicles in California.

Note: This product will not fit vehicles with a MAF sensor. Please confirm your car does not have this part before ordering:


Warranty: All 034Motorsport products are covered by our industry-leading 1 Year Warranty against defects in materials or workmanship. The 1 Year Warranty does not cover natural discoloration or cosmetic imperfections on carbon fiber finishes which occur over time.
