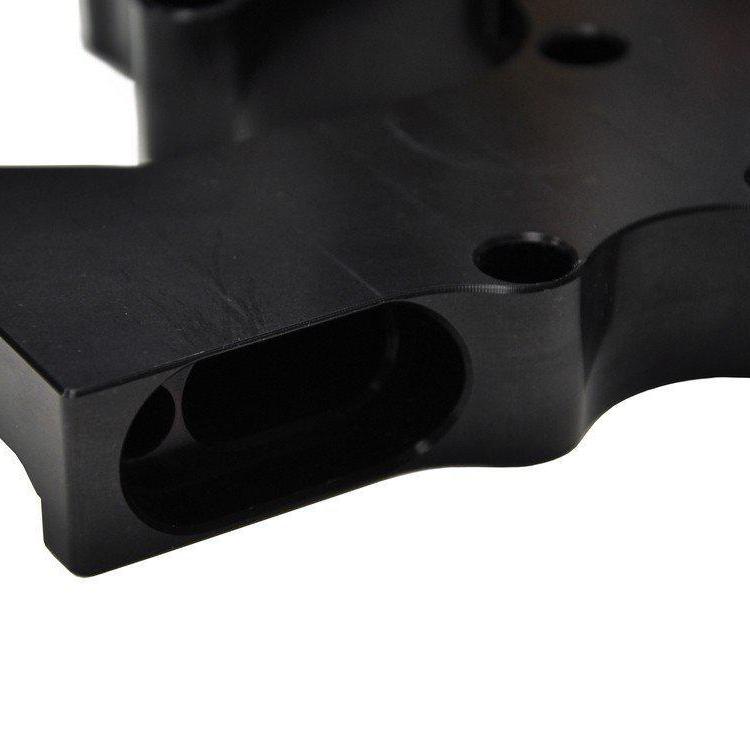

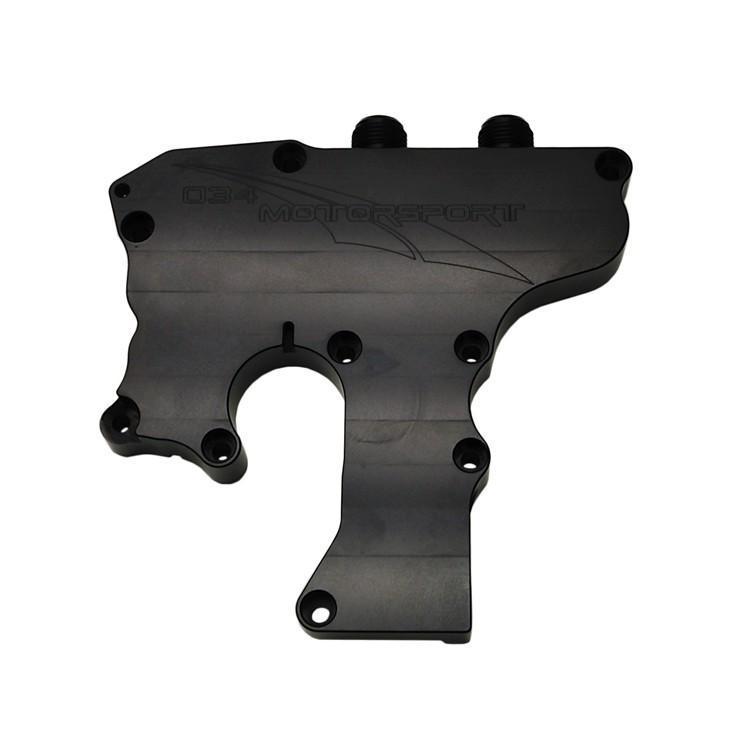

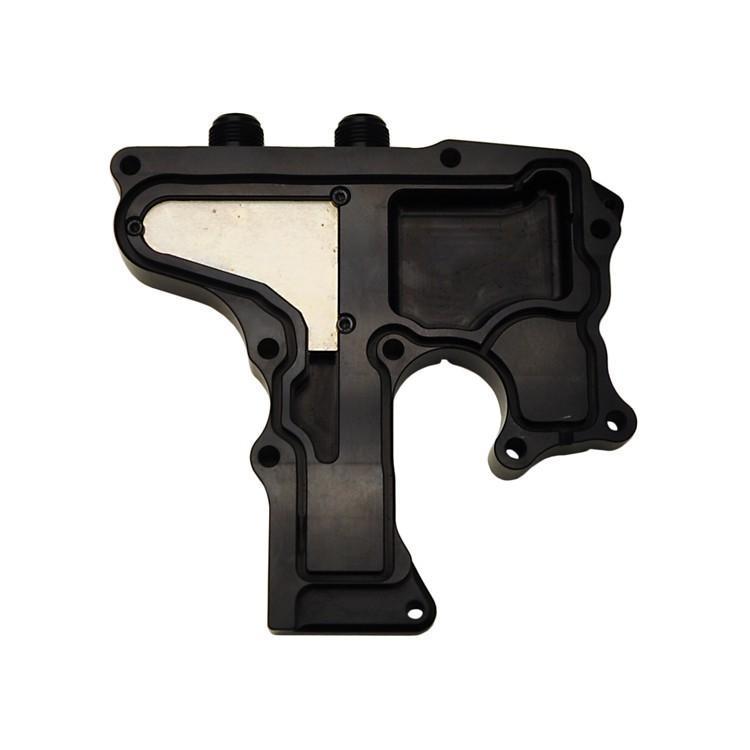

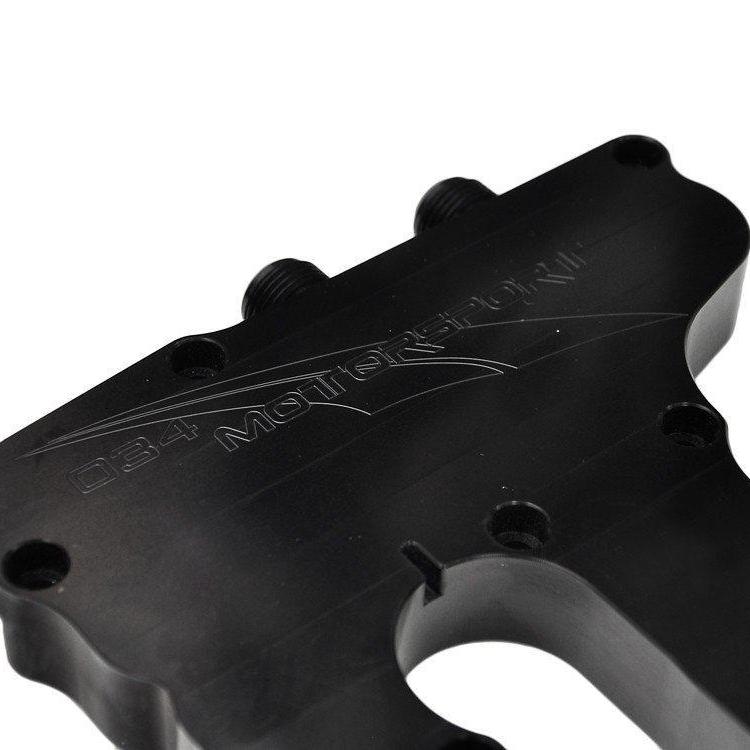

Valve Cover Breather Adapter, 2.0 TFSI & TSI, Catch Can Provision



SKU: 034-101-5000

Manufacturer: 034Motorsport

The 034Motorsport 2.0 TFSI/TSI Valve Cover Breather Adapter is designed to completely eliminate the failure-prone factory oil separator and PCV assembly and offers -10 AN connections to any catch can of your choice.

This part features internally-channeled construction, and connects directly to the factory breather tube going to the turbo inlet.

The Valve Cover Breather Adapter eliminates the breather provision on the intake manifold, eliminating a common source for a boost leak, and preventing oil from entering the intake manifold and contributing to carbon buildup.

Replaces OEM Audi/Volkswagen Part Number 06H 103 495E. 06H103495E

Features:

  • Complete Oil Separator & PCV Assembly Replacement
  • Connects to Factory Breather Tube to Turbo Inlet
  • CNC Machined 6061-T6 Aluminum
  • Internally-Channeled Construction
  • -10 AN Male Catch Can Inlet/Outlet Bungs
  • Black Anodized
  • Ball Clip Adapter Stud & Locknut for Factory Engine Cover Mount

What's Included:

  • 034Motorsport 2.0 TFSI/TSI Valve Cover Breather Adapter
  • M6 x 25 Allen Head Screws (Set of 9)

Fitment:(Fits All 2.0 TFSI & TSI Engines)

  • 2009 - 2013 Audi A4 (B8)
    • 2.0 TFSI
  • 2008 - 2013 Audi A5 (B8)
    • 2.0 TFSI
  • 2009 - Present Audi Q5 (B8)
    • 2.0 TFSI
  • 2008 - 2013 Audi A3 (8P)
    • 2.0 TSI
  • 2008 - 2013 Audi TT / TTS (8J)
    • 2.0 TFSI / 2.0 TSI
  • 2008 - 2009 Volkswagen Eos / GLI / GTI / Jetta (MkV)
    • 2.0 TSI
  • 2010 - 2013 Volkswagen Eos / GLI / Golf / GTI / R (MkVI)
    • 2.0 TSI
  • 2008 - 2010 Volkswagen Passat / CC (B6)
    • 2.0 TSI
  • 2011 - 2013 Volkswagen Passat / CC (B7)
    • 2.0 TSI
  • 2009 - Present Volkswagen Tiguan (5N)
    • 2.0 TSI

Installation Instructions:

  • Click Here! (From B8 Audi A4/A5 2.0 TFSI Catch Can Kit Installation)

Please Note: This is intended for use with a catch can, and requires a catch can to be installed for proper crankcase ventilation. Recommended for use with the 034Motorsport Intake Manifold Plug & Boost Tap.
